FH-01E
Xiyuan

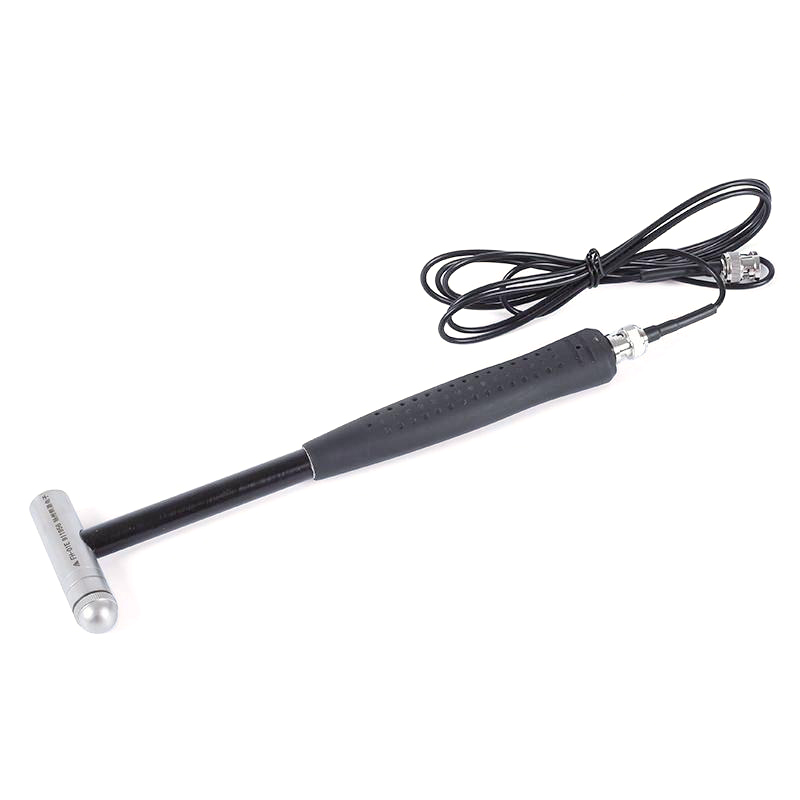

Cheap Price Modal Testing Piezoelectric Pulse Force Sensor Impact Hammer
This series of shock acceleration sensors are characterized by light weight, high stiffness, fast response and wide frequency response, which are suitable for shock, collision, test and other related applications.
|  |  |  |  |  | ||
| Stainless steel | Aluminium | Rubber | Nylon | counterweight block | |||
| Model number | Sensitivity | Maximum impact force （kN） | Hammer head diameter（mm） | Hammer head weight（g） | Additional Hammerhead Weight（g） | Hammer handle length（mm） | |
| PE type | FH-01 | 4pC/N | 2 | φ17 | 60 | 24 | 240 |
| FH-02 | 4pC/N | 5 | φ17 | 60 | 24 | 240 | |
| FH-03 | 4pC/N | 60 | φ30 | 350 | 120 | 275 | |
| IEPE type | FH-01E | 2.5mV/N | 2 | φ17 | 60 | 24 | 240 |
| FH-02E | 1mV/N | 5 | φ17 | 60 | 24 | 240 | |
| FH-03E | 0.08mV/N | 60 | φ30 | 350 | 120 | 275 |
