S31F20A
Xiyuan
Popular Promotional High Performance Premium High Accuracy 3 Phase Ac Current Power Sensor Transducer Transmiter

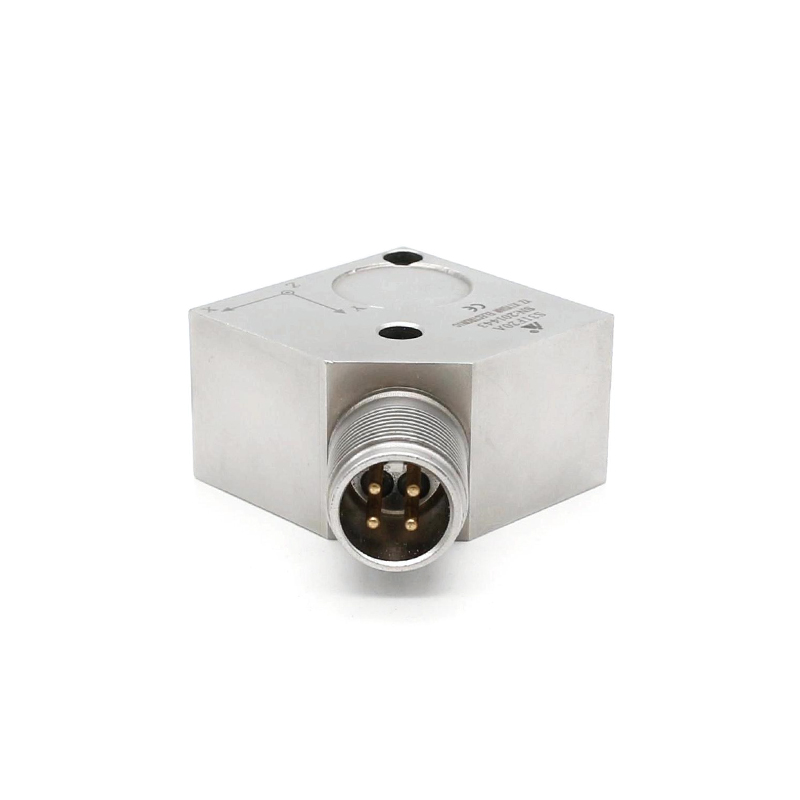

S31F type triaxial integrated vibration transmitter is our company's patented product, Patent number: ZL 2017 1 0740770.3.
This model is based on the piezoelectric acceleraton sensor through the specializaton of high-precision design,embedded in the intemal precision integral circuit, the output of the 4-20mA signal,can be connected to a variety of general-purpose secondary instrumentation or computer digital acquisition and monitoring system.
| Features | Unit | S31F20A |
| Measuring range (RMS) | mm/s | 0~20 |
| Output | mA | 4~20 |
| Amplitude non-linearity | % | <2 |
| Measurement error | % | ±3 |
| Frequency response(±1dB) | Hz | 10~1,000 |
| Frequency response(±3dB) | Hz | 5~1,000 |
| Transverse sensitivity | % | ≤5 |
| Supply voltage | VDC | 15~30 |
| Operating temperature | ℃ | -40~+85 |
| Shock limit (peak) | g | 1000 |
| Structure and piezo material | Shear/PZT-5 | |
| Outline dimension | See external dimension drawing | |
| Housing material | 304 stainless steel | |
| Electrical connector | MIL-C-5015 4-PIN socket | |
| Mounting method | M6 or 2-M5 through-hole | |
| Protection class | IP65 | |
| Weight | g | ~180 |
| Mounting bolts | M6 or 2-M5 hexagon | |
| Connection cable | D13-3M |
