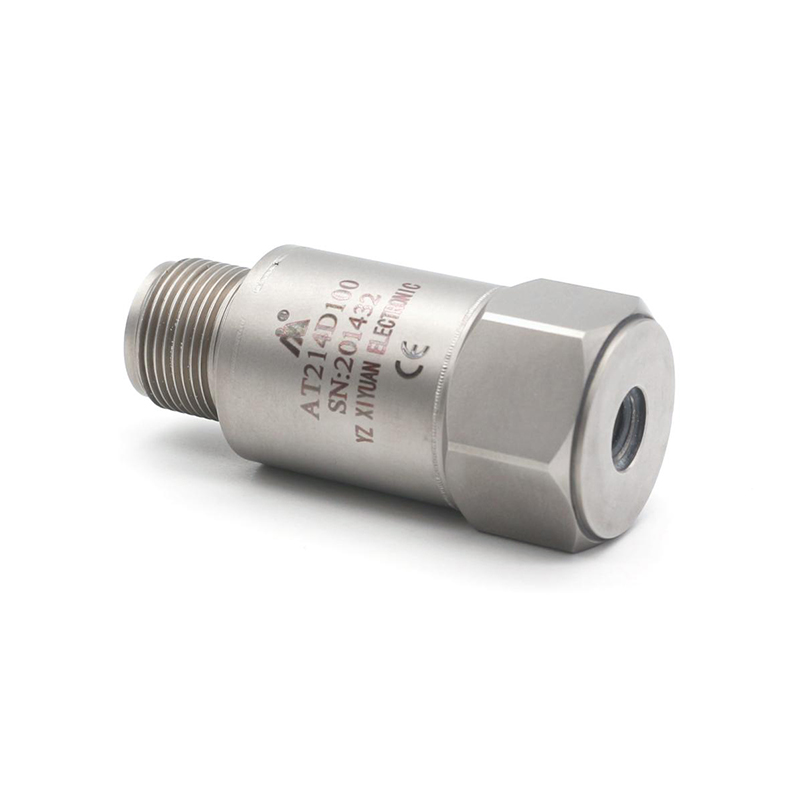

AT214D100
Xiyuan
Professional Practical Circuit Vibration And Temperature Sensor Complex Vibration Accelerometer for Industrial
This series of acceleration sensors for vibration and temperature dual output composite sensors, stainles steel shell, laser welding sealing, high reliablity, double shielding anti-interference ability, suitable for a variety of harsh environments for long-term reliable work.
Aplied to industrial rotating machinery, rail transportation, intelligent ships and other transmission systems, gears, bearings, drive shaft vibraton temperature dualparameter monitoring.
| Features | Unit | AT21 1D100 | AT212 D100 | AT213 D100 | AT214 D100 | AT216 D100 | AT212 GT100 | AT264F100 |
| ACCELERATION | ||||||||
| Measuring range (peak) | g | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 | ±50 |
| Sensitivity (20土5℃) | mV/g | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Amplitude non-linearity | % | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Frequency response (1dB) | Hz | 1~9,000 | 1~9,000 | 1~9,000 | 1~9,000 | 1~9,000 | 1~9,000 | 1~9,000 |
| Frequency response (3dB) | Hz | 0.5~15,000 | 0.5~15,000 | 0.5~15,000 | 0.5~15,000 | 0.5~15,000 | 0.5~15,00 | 0.5~3,000 |
| Maximum transverse sensitivity | % | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
| Mounting resonance frequency | Hz | ≥25,000 | ≥25,000 | ≥25,000 | ≥25,000 | ≥25,000 | ≥3,000 | ≥10,000 |
| Supply voltage | VDC（Constant current source） | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 |
| Constant current source excitation | mA | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 |
| Output impedance | Ω | ＜100 | ＜100 | ＜100 | ＜100 | ＜100 | ＜100 | ＜100 |
| Dynamic range | V（peak） | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Signal pair shielding | Ω | ≥108 | ≥108 | ≥108 | ≥108 | ≥108 | ≥108 | ≥108 |
| Noise (rms) | μV | ＜50 | ＜50 | ＜50 | ＜50 | ＜50 | ＜50 | ＜50 |
| Operating temperature | ℃ | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 |
| Shock limit (peak) | g | ±2000 | ±2000 | ±2000 | ±2000 | ±2000 | ±2000 | ±1000 |
| Structure and piezo material | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | |
| TEMPERATURE | ||||||||
| Temperature output | Analog chip | Analog chip | DS18B20 | Pt100A | 4-20mA | Analog chip | Pt100A | |
| Temperature sensitivity | 10mV/℃ | 10mV/℃ | Digital signal | A level(±0.15%) | -- | 10mV/℃ | A level(±0.15%) | |
| Temperature measurement range | ℃ | 0~+100 | -40~+120 | -55~+125 | -50~+300 | -35~+125 | -40~+120 | -40~+120 |
| COMMON | ||||||||
| Outline dimension | See external dimension Fig.1 | See external dimension Fig.1 | See external dimension Fig.1 | See external dimension Fig.1 | See external dimension Fig.1 | See external dimension Fig.1 | See external dimension Fig.1 | |
| Housing material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | |
| Electrical connector | MIL-C-5015 3-Pin socket or integral cord optional | MIL-C-5015 3-Pin socket or integral cord optional | MIL-C-5015 3-Pin socket or integral cord optional | MIL-C-5015 4-Pin or 5-pin socket integral cord optional | MIL-C-5015 4-Pin socket or integral cord optional | MIL-C-5015 3-Pin socket or integral cord optional | integral line leads | |
| Mounting method | 1/4-28 | 1/4-28 | 1/4-28 | 1/4-28 | 1/4-28 | 1/4-28 | M6 or 2-M5 through-hole | |
| Protection class | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |
| Weight | g | ~80 | ~85 | ~80 | ~80 | ~90 | ~260 | ~180 |
| Mounting bolts | 1/4-28 to M6 | 1/4-28 to M6 | 1/4-28 to M6 | 1/4-28 to M6 | 1/4-28 to M6 | 1/4-28 to M8 | M6 or 2-M5 Hehagon | |
| Contection cable | D08-3M | D08-3M | D08-3M | D08-3M | D08-3M | D08-3M | D08-3M | |
