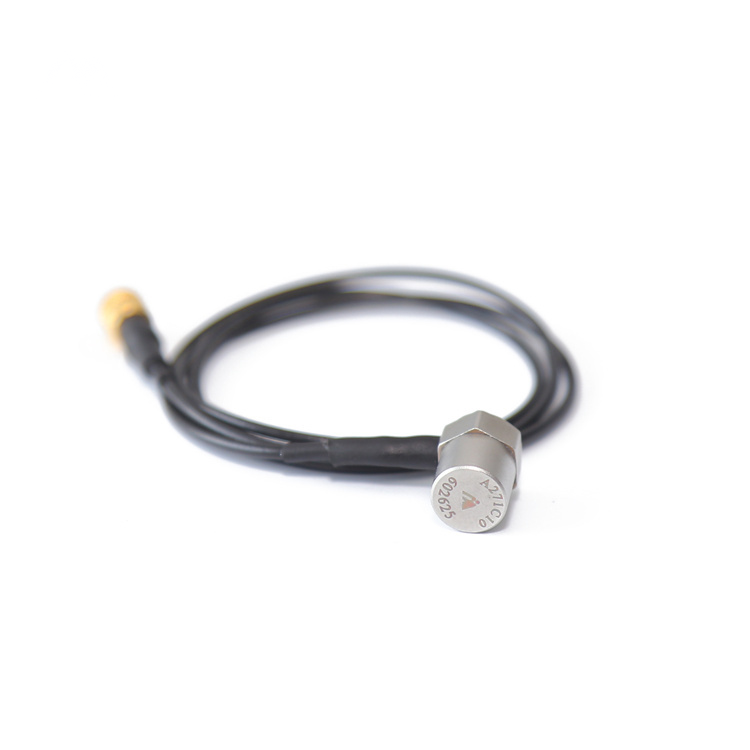

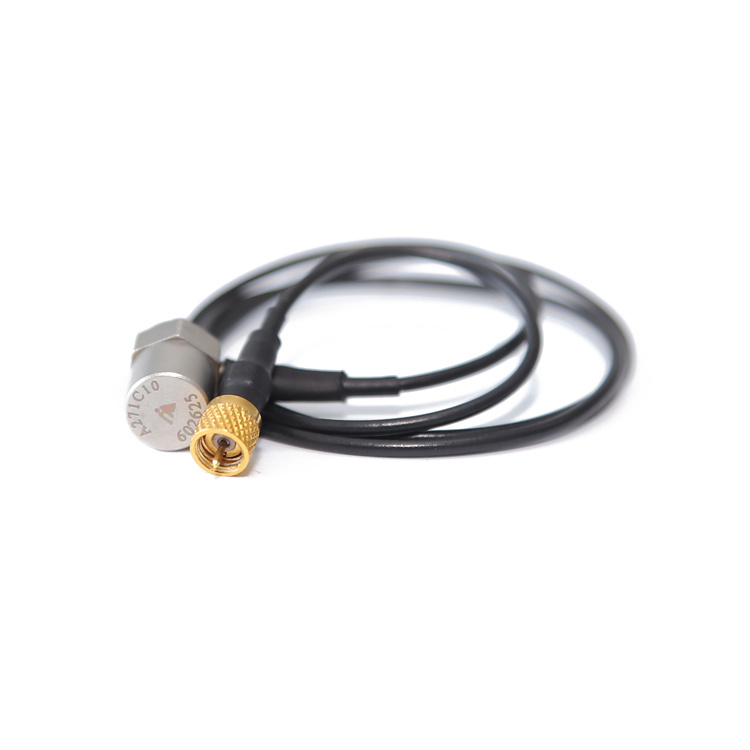

Small Single Axis Voltage Sensor Output Acceleration Sensor Piezotronic Miniature IEPE Accelerometer Micro Sensors
This series of micro acceleration sensors is equipped with an accelerometer with a built-in circuit, which converts high impedance charge signals into low impedance voltage signals, and uses coaxial cables to simultaneously perform constant current source excitation input and signal output.
Wide frequency response, small size, light weight, suitable for applications such as structural testing, fatigue testing, environmental testing, drop testing, component calibration, high-frequency applications, etc.
| Features | Unit | A27C10 | A271C10 | A272C100 |
| Measuring range (peak) | g | ±500 | ±500 | ±50 |
| Sensitivity (25°C) | mV/g | 10 | 10 | 100 |
| Frequency response (1dB) | Hz | 1-15,000 | 1-12,000 | 1-10,000 |
| Mounting resonance frequency | Hz | ≥55,000 | ≥35,000 | ≥30,000 |
| Transverse sensitivity | % | ≤5 | ≤5 | ≤5 |
| Excitation voltage | VDC (Constant current source) | 18~28 | 18~28 | 18~28 |
| Constant current source excitation | mA | 2~10 | 2~10 | 2~10 |
| Output impedance | Ω | ＜100 | ＜100 | ＜100 |
| Full scale output (peak) | V | ±5 | ±5 | ±5 |
| Noise (rms) | μV | <100 | <50 | <50 |
| Bias Voltage | V | +9~+13 | +9~+13 | +9~+13 |
| Operating temperature | ℃ | -40 ~+65 | -40~ +65 | -40~ +65 |
| Shock limit (peak) | g | ±2000 | ±1000 | ±2500 |
| Structure and piezo material | Shear/ PZT-5 | Shear/ PZT-5 | Shear/ PZT-5 | |
| Outline dimension | mm | 6*4.5*10(See external dimensions Fig. 1) | φ8*12(See externl dimensions Fig. 2) | 10*10*10(See external dimensions Fig. 3) |
| Housing material | Stainless steel | Stainless steel | Stainless steel | |
| Electrical connector | Overall connection | Overall connection | Overall connection | |
| Mounting method | Gum | M3 | M3 | |
| Weight | g | ~2（Without cables） | ~5 | ~7.5 |
| Mounting bolts | / | M3 to M5 | M3 to M5 | |
| Cable | Overall cable+L5 | Overall cable+L5 | D02-2m |
